Minimum House in Toyota/

Nori Architects

Japan

Project Details

Location

Location(City/Country):

Aichi / Japan
Tipology

Tipology:

Residential
Year

Year (Design/Construction):

2020 / 2022
Area

Area (Net/Gross):

88.30 m2 / 50.45 m2
Operational Carbon emissions

Operational Carbon emissions (B6) kgCO2e/m2/y:

-
Embodied Carbon emissions

Embodied Carbon emissions (A1-A3) kgCO2e/m2:

-
  • The project is a prototype of urban housing in an age of global environmental crisis, by providing a house  full of light, wind, and natural materials, with less construction material and waste.
  • A  warm wood-filled space is created by eliminating interior finishes,  using exterior insulation, and exposing the wood structure, base, piping, and wiring. This strategy reduces the material demand of the building.
  • The use of the wood as the main material of the building reduces its carbon footprint, since it is a natural and renewable material.
  • To ensure year-round comfort and energy efficiency, the exterior skin and mechanical equipment were designed for comfort and energy-efficiency.
  • By using exterior insulation, high-performance window sashes, and eaves, the building achieved high envelope performance, with a UA value of 0.49 (ZEH+ standard) and an ηAC value of 2.2 (above the energy conservation standard).
  • A comfortable thermal environment was achieved at low cost by devising ventilation routes and using fans and ducts to distribute warm/cold air from a single under-floor air conditioner to each zone.

Project description as provided by the Architects:

A New Prototype of Urban Housing

A house for a young couple and their two children in Toyota City, Aichi Prefecture. Located on a long and narrow site east to west, there is heavy traffic on the west side of the road, buildings closely adjacent on the north and south sides with a wide opening to the sky in the southeast at the second floor.

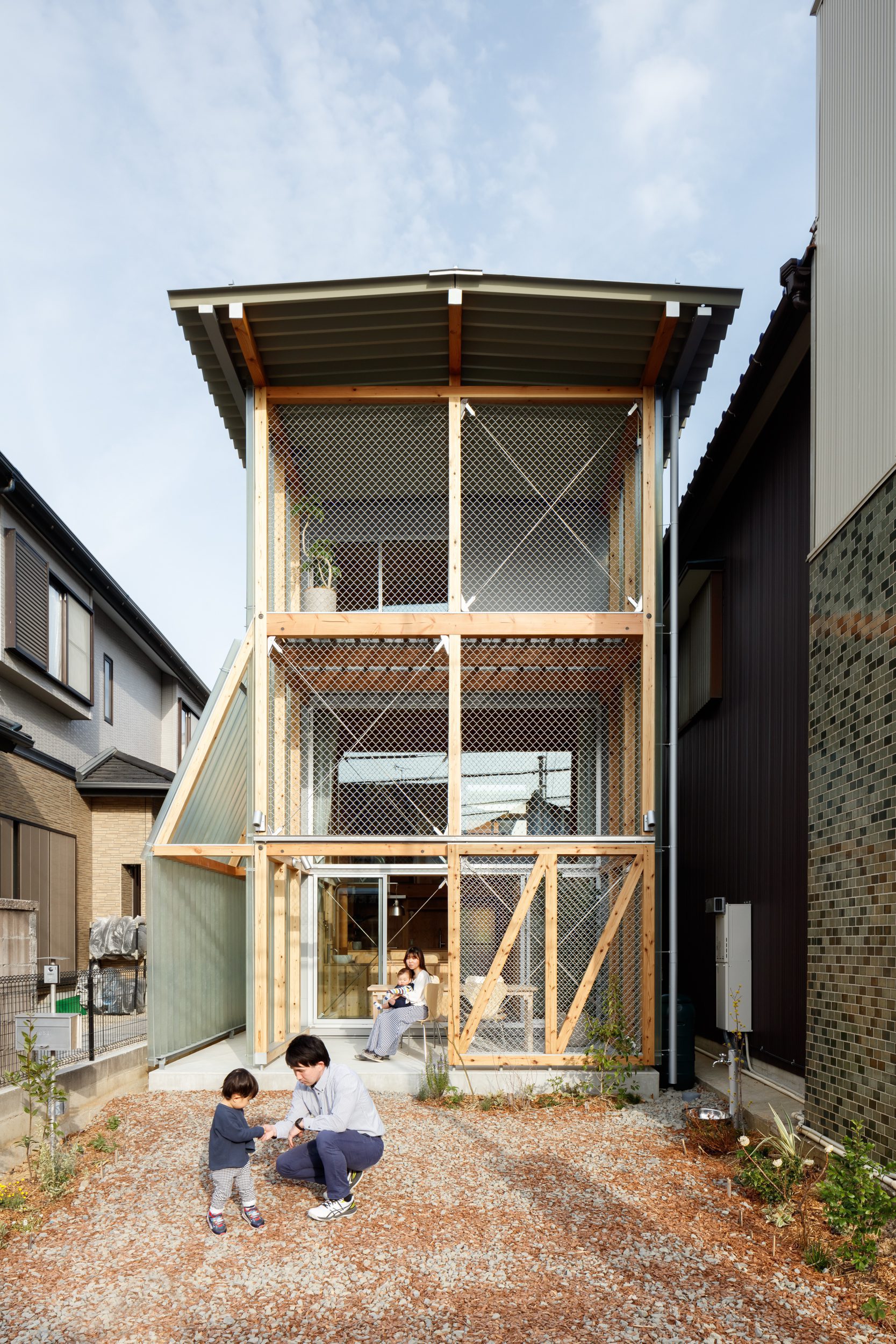

The massing is a compact box with a frontage of 2 ken(3.6m) x depth of 7.5 ken(13.6m) , 15 tsubo(50m2) x 2 floors = 30 tsubo(100m2) in total, with a height of approximately 6 m. The structure is divided into three levels. A large window on the southeast wall of the living room connects to the urban void.  The covered terrace along the street-side of the dining room and kitchen has a mesh front and translucent walls on the sides to allow full access to the changing light and wind while maintaining a moderate sense of distance from the city.

To ensure year-round comfort and energy efficiency, the exterior skin and mechanical equipment were designed for comfort and energy-efficiency. Within a limited budget, we devised ways to ensure high performance with a combination of thoroughly reduced materials and low-priced equipment.

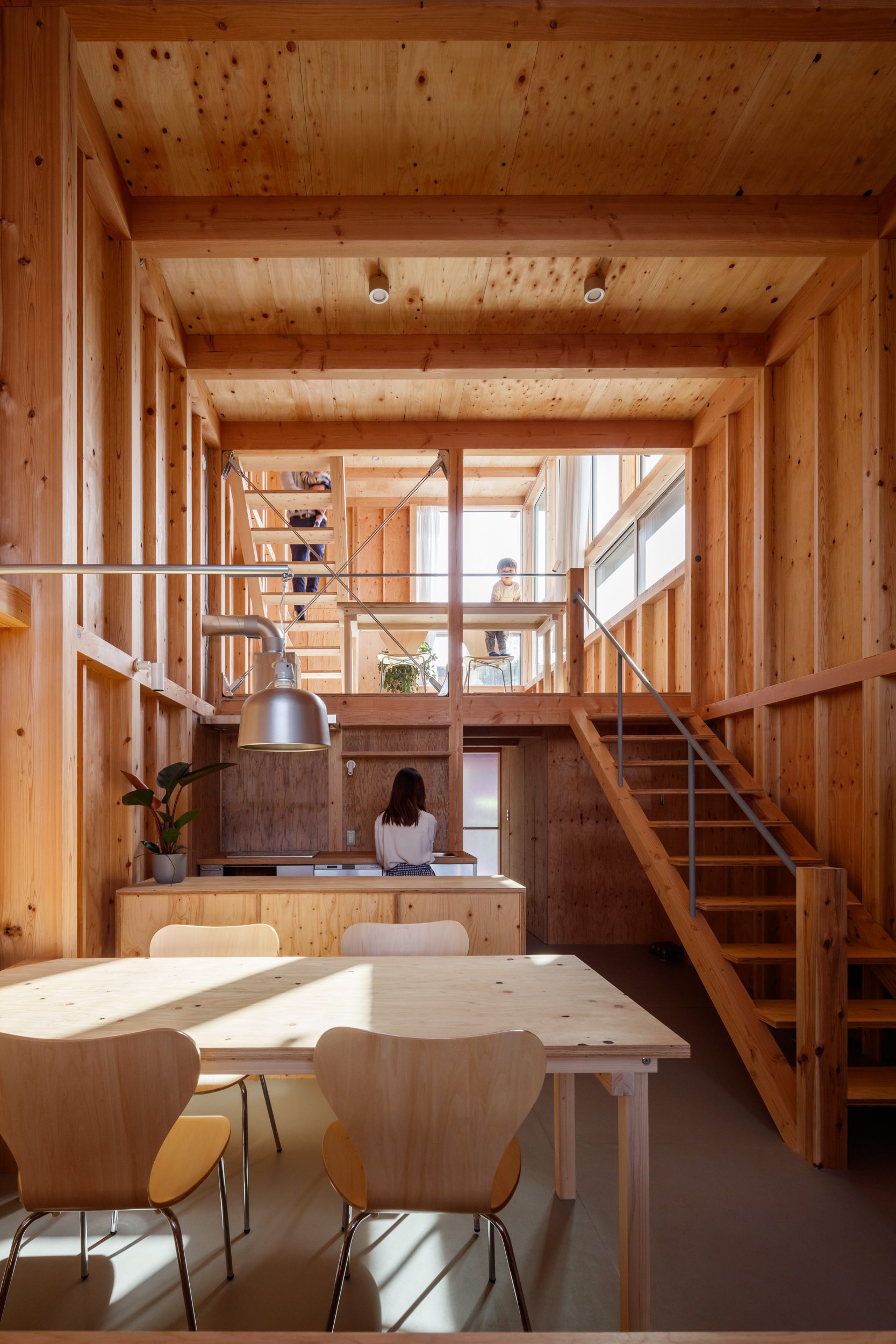

We created a warm wood-filled space by eliminating interior finishes by using exterior insulation, and exposing the wood structure, base, piping, and wiring.  This allows the residents to understand the structure of the building and to make repairs and modifications on their own.

This is a proposal for a new prototype of urban housing in an age of global environmental crisis, by providing a delightful house open to the inside (family) and outside (city), full of light, wind, and natural materials, with less construction material and waste.

Realization of high earthquake resistance, comfortable thermal environment, and healthy soil environment at low cost

By placing load-bearing walls with structural plywood and steel braces at appropriate intervals at both ends of each floor in the short direction, we achieved high earthquake resistance performance (Grade 3) while eliminating deformation differences in the skip floor and suppressing deformation during wind pressure, as well as ensuring spatial flexibility and transparency.

The height of the three stories were reduced to under 6 m. The roof was constructed with a reduced number of components, by utilizing 3.5″ square timbers on top of the exterior insulation and a folded roof over baseboards and asphalt roofing.  This strategy helped simplify the roof framing and eliminated the need for rafters.

By using exterior insulation, high-performance window sashes, and eaves, the building achieved high envelope performance, with a UA value of 0.49 (ZEH+ standard) and an ηAC value of 2.2 (above the energy conservation standard).

A comfortable thermal environment was achieved at low cost by devising ventilation routes and using fans and ducts to distribute warm/cold air from a single under-floor air conditioner to each zone.

In addition, the entire site, including the soil, was improved by digging trenches and holes in the exterior, burying organic materials, and allowing water and air to move through the soil in a way that is possible even for amateur builders.

Architect : Norihisa Kawashima

Collaborator: Yuki Tsutsumi, CHIPS LLC, TOKORO.

Photo: Jumpei Suzuki
